2 BLUE Aluminum 25T Servo Horn for POWER HD WP23KG LW25 MG LF20 LW20 WP23 DW25
2 BLUE Aluminum 25T Servo Horn for POWER HD WP23KG LW25 MG LF20 LW20 WP23 DW25
PowerHobby

2 BLUE Aluminum 25T Servo Horn for POWER HD WP23KG LW25 MG LF20 LW20 WP23 DW25

Regular price $7.99 $0.00 Unit price per
use code "chicago10" and save 10% off your order plus Free Shipping

Aluminum Servo Horn 25T M3 Thread Blue, for Futaba Savox Xcore Go Tech,2pcs

Aluminum Servo Horn 25T M3 Thread Blue, for Futaba Savox Xcore Go Tech,2pcs

25 Thread Spline & M3 thread & 2 clamp system to adjustable.

Suitable for mostly 25T Standard Servo Motor,such as Futaba,Savox,Xcore,HL,HSP,HD Power,Go Tech.

For vehicle type : for RC, Buggy, Car, Truck, Truggy, Airplane, Bomber.

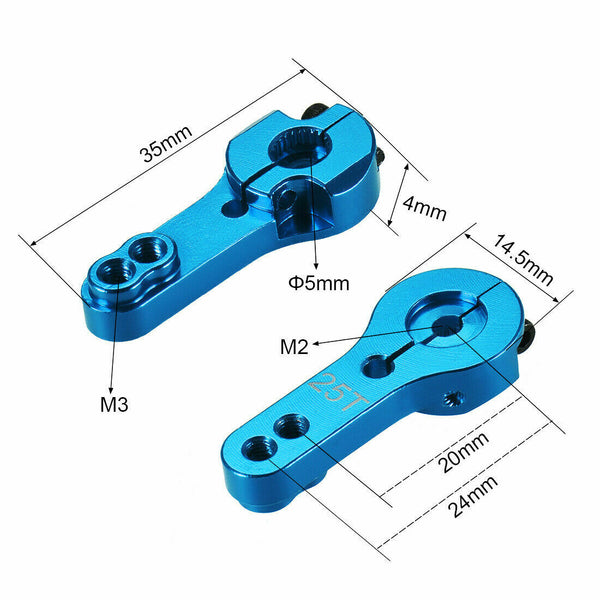

Specifications

2 clamp system with M3 thread

Material: Aluminum

Head Hole Thread: M2

Arm Hole Thread: M3

Head Central Small Hole Diameter: 2.5mm

Head Big Hole Diameter(Teeth Side): 5mm

Head Big Hole Diameter(Back of Teeth Side): 7mm

Maximum Thickness: 6mm

Minimum Thickness: 4mm

Maximum Width: 14.5mm

Total Length: 35mm

Distance from hole center to hole center:20mm,24mm

Color: Blue

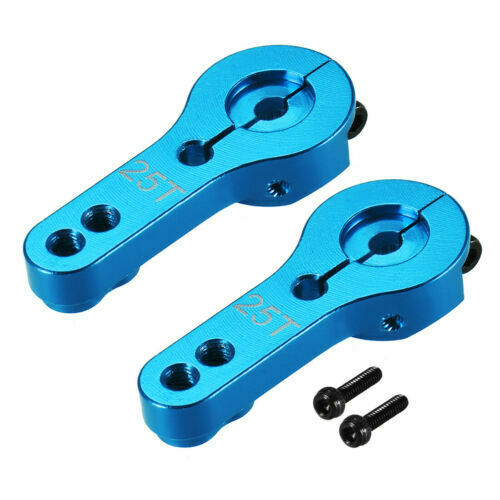

Package Content:

2pcs x Aluminum Servo Arm

4pcs x M2 Screw
