2 BLUE Aluminum 25T Servo Horn for Savox 1210SG 1256TG SA1230SG SC1258TG SW0231

25 Thread Spline & M3 thread & 2 clamp system to adjustable.

Suitable for mostly 25T Standard Servo Motor,such as Futaba,Savox,Xcore,HL,HSP,HD Power,Go Tech.

For vehicle type : for RC, Buggy, Car, Truck, Truggy, Airplane, Bomber.

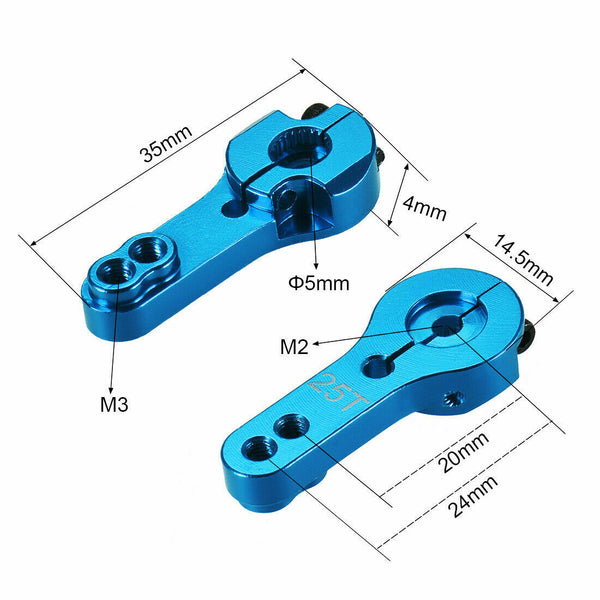

Specifications

2 clamp system with M3 thread

Material: Aluminum

Head Hole Thread: M2

Arm Hole Thread: M3

Head Central Small Hole Diameter: 2.5mm

Head Big Hole Diameter(Teeth Side): 5mm

Head Big Hole Diameter(Back of Teeth Side): 7mm

Maximum Thickness: 6mm

Minimum Thickness: 4mm

Maximum Width: 14.5mm

Total Length: 35mm

Distance from hole center to hole center：20mm,24mm

Color: Blue

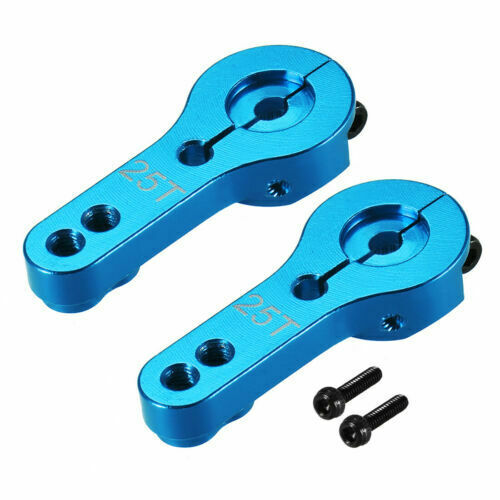

Package Content:

2pcs x Aluminum Servo Arm

4pcs x M2 Screw
