3 BLACK Aluminum 25T Servo Horn for POWER HD WP23KG LW25 MG LF20 LW20 WP23 DW25
3 BLACK Aluminum 25T Servo Horn for POWER HD WP23KG LW25 MG LF20 LW20 WP23 DW25
PowerHobby

3 BLACK Aluminum 25T Servo Horn for POWER HD WP23KG LW25 MG LF20 LW20 WP23 DW25

Regular price $10.99 $0.00 Unit price per
Free Shipping

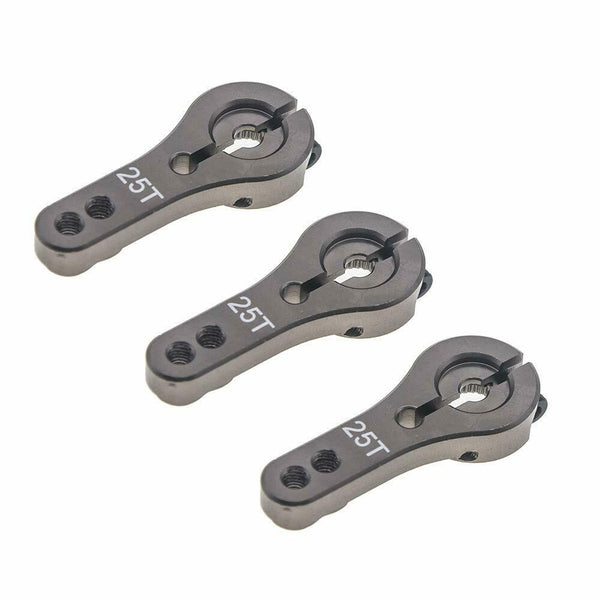

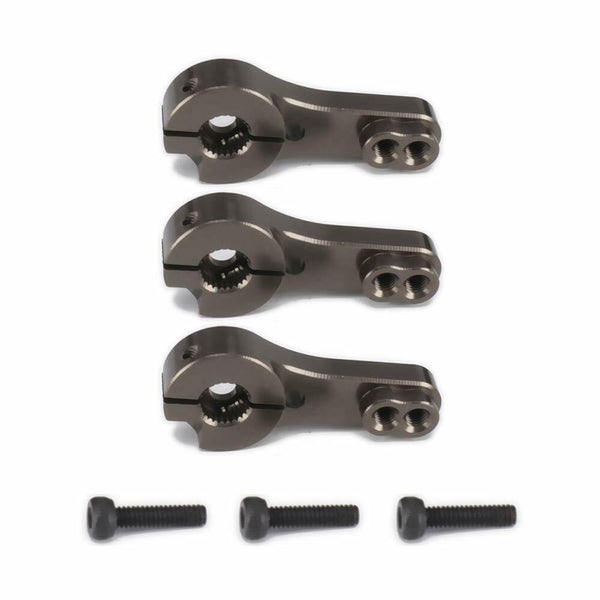

3 PACK Aluminum Servo Horn 25T M3 Thread BLACK, for Futaba Savox Xcore Go Tech


25 Thread Spline & M3 thread & 2 clamp system to adjustable.

Suitable for mostly 25T Standard Servo Motor,such as Futaba,Savox,Xcore,HL,HSP,HD Power,Go Tech.

For vehicle type : for RC, Buggy, Car, Truck, Truggy, Airplane, Bomber.



Specifications

2 clamp system with M3 thread

Material: Aluminum

Head Hole Thread: M2

Arm Hole Thread: M3

Head Central Small Hole Diameter: 2.5mm

Head Big Hole Diameter(Teeth Side): 5mm

Head Big Hole Diameter(Back of Teeth Side): 7mm

Maximum Thickness: 6mm

Minimum Thickness: 4mm

Maximum Width: 14.5mm

Total Length: 35mm

Distance from hole center to hole center:20mm,24mm
