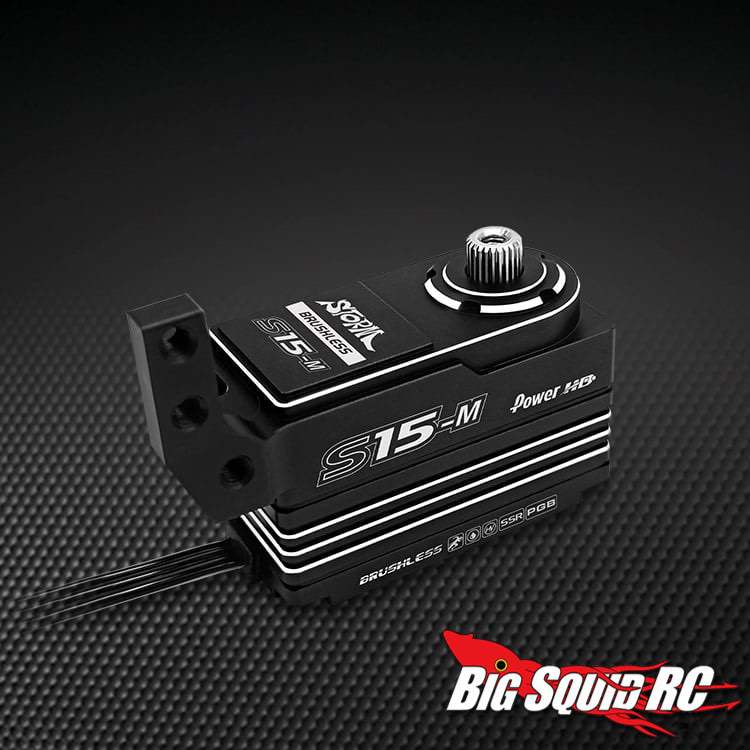

Power HD S15-M Brushless Servo - 2

POWER HD S15-M SERVO FOR THE MUGEN MTC2

Power HD has announced a new high-performance servo designed specifically for the Mugen MTC2 touring car. The S15-M is a direct-mount servo that provides a lower center of gravity and can be tuned for even greater performance.

Features of the S15-M servo include an aluminum enclosure with a black finish and silver accents, all-metal gears, a brushless motor, and a relatively light weight design.

POWER HD S15-M SPECS:

  • Torque (6.0V): 11.5 kg-cm (159.7 oz/in)
  • Torque (7.4V): 15.0 kg-cm (208.3 oz/in)
  • Torque (8.4V): 16.5 kg-cm (229.1 oz/in)
  • Speed: 0.072 sec (6.0V) │ 0.060 sec (7.4V) │ 0.050 sec (8.4V)
  • Operating Voltage:6.0 ~ 8.4 DC Volts
  • Weight: 57.5 g (2.03 oz)
  • Bearing Type:Ball Bearing x 2
  • Motor Type:Brushless Motor
  • Gear Type:Titanium & Steel
  • Operating Temperature: -20℃~60℃
  • Working frequency:1520μs / 333hz
  • Size:41.0 x 20.0 x 26.0 mm ( 1.61 x 0.79 x 1.02 in)

Learn more about the S15-M servo on the Power HD Fac
