TrackStar ROAR Approved (21.5T) 1/10th Stock Class Brushless ESC and Motor Combo

Regular price $89.99 $0.00 Unit price per
Free Shipping

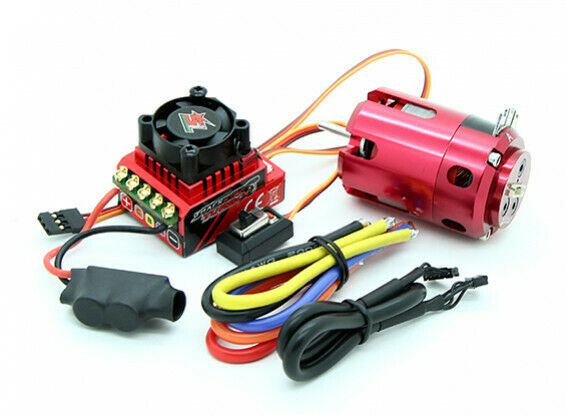

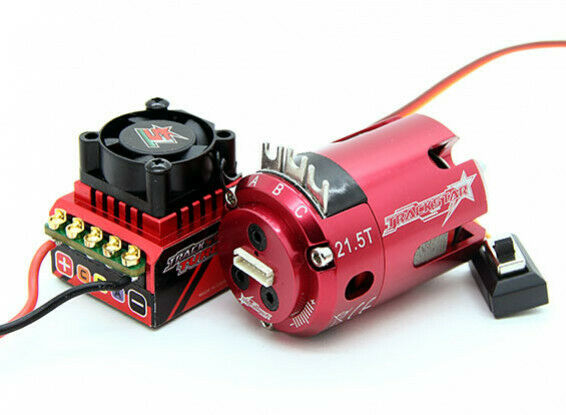

To celebrate the TrackStar 1/10th 80A Turbo brushless ESC and Motor receiving ROAR approval, HobbyKing is now introducing the TrackStar ROAR approved 1/10th Stock Class Brushless ESC and Motor Combo set!

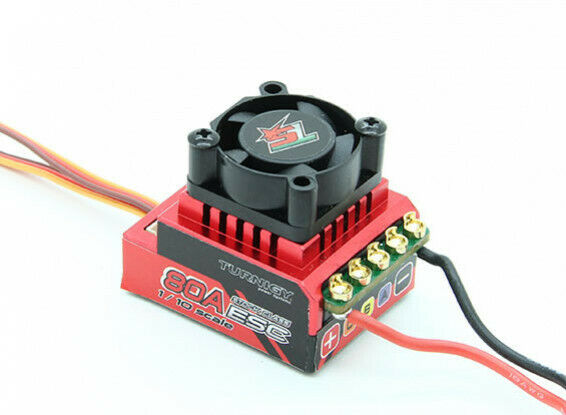

The ESC features a CNC alloy case top that incorporates the heatsink for the Mosfets, neat terminal cups for both the battery input and ESC output cables. The ESC software has a large number of user-programmable settings such as punch, initial brake, drag brake, boost timing RPM, boost timing, Turbo timing, Turbo delay, Turbo ramp, boost acceleration - allowing this ESC to be customized in nearly every way you could ever need for 1/10 scale on or off-road racing!

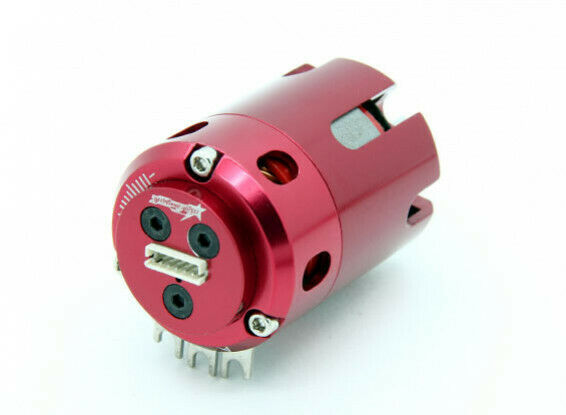

The motor features a quality CNC alloy motor can, hand-wound high purity copper windings and powerful sintered neodymium magnets, you won't find a better-priced motor of this caliber anywhere else! They also feature adjustable timing which allows for fine-tuning the performance of your ride while the sensor ensures smooth startups and acceleration.

ESC Specs:
Max Voltage: 2S Lipoly / 6 cell NiMH
Motor limit: 10.5T
Resistance: 0.0004 ohm
Operating current: 80A
Burst Current: 380A
Bec Current: 3A
Bec Voltage: 6V
"Blinky" mode (Non-timing mode): Yes

Programming Options:
Operation Mode: Forward/Brake/Reverse; Forward/Brake Only
Initial Brake: 10% ~ 80%
Drag Brake: 0% ~ 40%
Brake Strength: 50% ~ 100%
Voltage Cutoff: None ~ 3.5V/cell
Punch Profile: Level 1 ~ 9
Neutral DeadBand: 1% ~ 8%
Boost Timing: 0deg ~ 60deg
Turbo Slope: 3deg/0.1s, 6deg/0.1s, 12deg/0.1s, 18deg/0.1s, 24deg/0.1s, Fastest
Turbo Timing: 0deg ~ 30deg
Boost Timing RPM: 2000 ~15000
Turbo Delay: Off, 0.05sec, 0.1sec, 0.15sec, 0.2sec, 0.25sec, 0.3sec, 0.35sec, 0.4sec
Boost Timing ACC: 50RPM/deg ~ 700RPM/deg
Reverse Speed: 25% ~ 100%
Drive Frequency: 8Khz, 16Khz, 24khz
Brake Frequency: 1,2,4,8,16Khz
Temperature protection: On/Off

Motor Specs:
Can Size: 540
Turns: 21.5
RPM/v: 1855kv
Sensored: Yes (Standard 6 pin harness)
Max voltage: 7.4 (2S)
Max Current: 22A
Max Watts: 150w
Can Diameter: 36mm
Can Length: 53mm
Shaft Size: 3.175mm
Weight: 177g

Includes:
ESC x 1
Motor x 1
Sensor wire
TrackStar Sticker
Manual

Now officially approved by ROAR for 21.5T spec stock class race use!
